What is the correct way to connect wires?

+3 votes

T-Taps, Butt connectors 2 pounds of solder I've seen and heard it all...most of the time resulting in a headache and lost time. So i thought i would break it down and show the 5 easy steps to make a good quality and secure connection in a vehicle.

The 5 Steps are as follows:

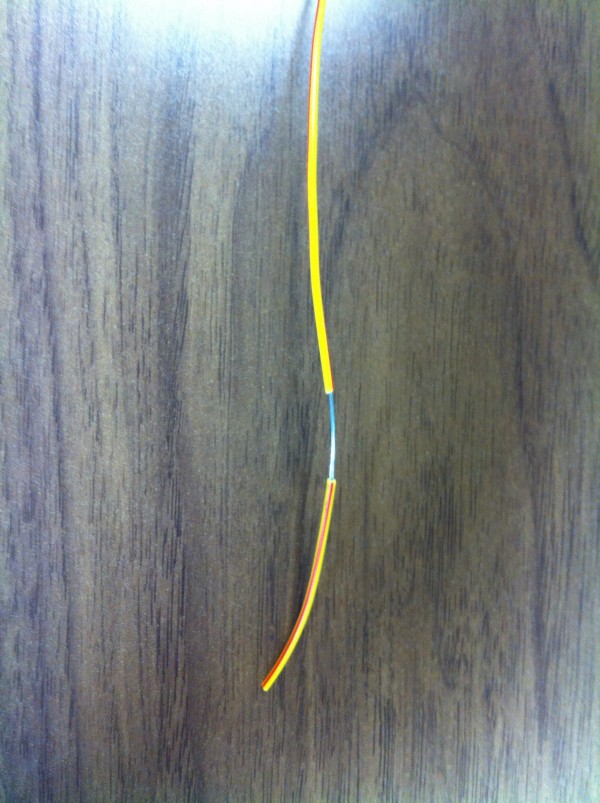

1- Strip back the inulation of the wire you wish to connect to.

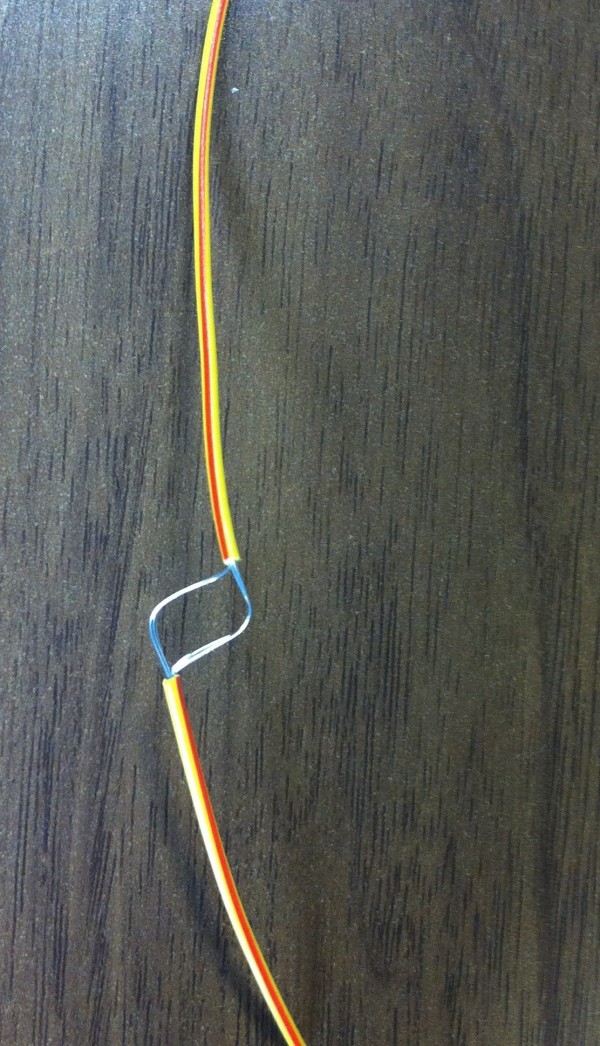

2- Seperate the braid to create an opening in the wire.

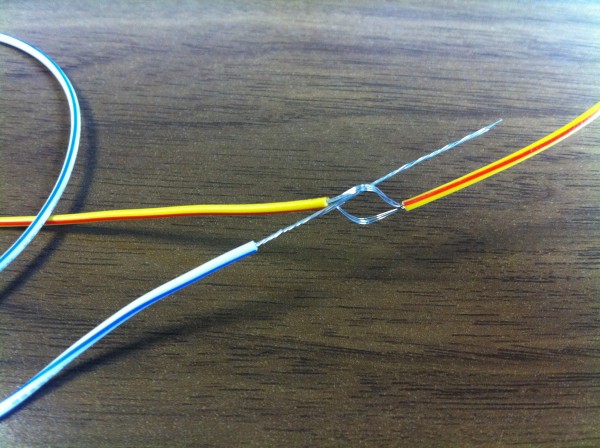

3- Insert the wire that is to be connected into the opening.

4- Close the wire.

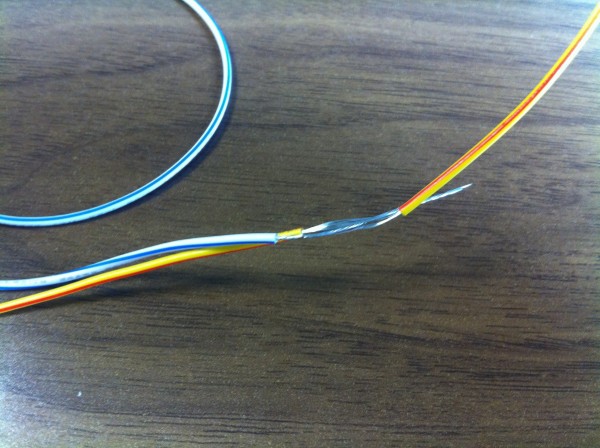

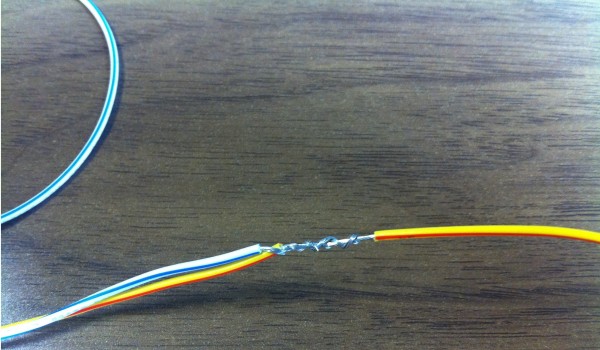

5- Finally twist the wire around securing them togehter and finish it off with some electrical tape.

closed with the note: information only
asked Jul 5, 2016 in FAQ by derek g (340,410 points)
closed Oct 22, 2018 by Robert T
...
